dropControllerV4: Overview


dropControllerV4 is a professional water drop photography kit that is powerful, and extremely accurate, and easy to use. Control is performed using a webapp that gives easy and clear control.

  • 12v or 24v
  • 8 Valve ports
  • Removable mounting bracket
  • Status LCD screen
  • Powerful, fast, dual-core processor
  • Clear and easy to use control app
  • Compatible with 2.4ghz wifi networks

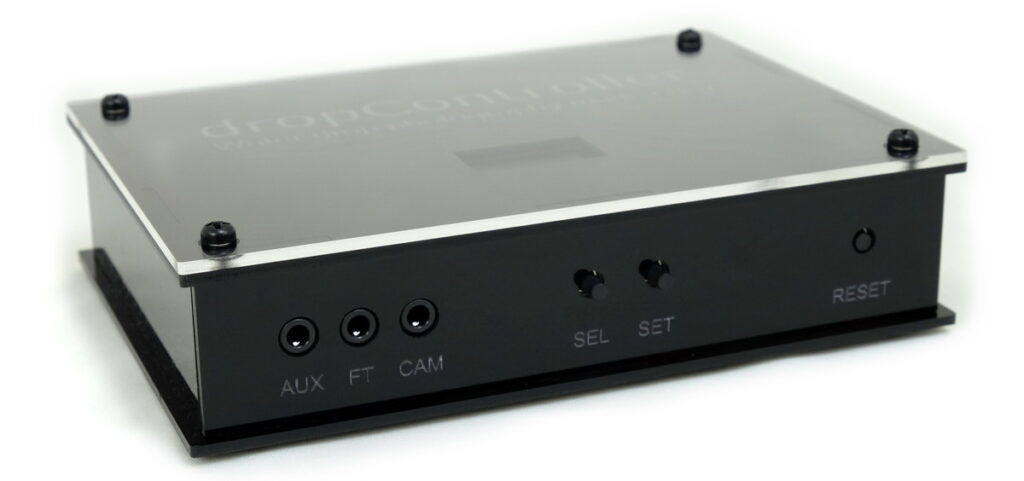

On The Front

  • RESET
  • SET: Set/confirm Button
  • SEL: Select Button
  • CAM: Camera Port
  • FT: Flash Trigger Port
  • AUX: Auxiliary Trigger Port

Reset Button

Used to reset the dropController (cycle the power). Useful when you want to clear the network credentials using the Set button.

Set/Confirm Button

Multifunction button:
– Used to clear the network credentials from memory.
– Used to display the current IP address & firmware version.
– In Manual Drain Mode; used to open and close the valves.

Select Button

Used to enter Manual Drain Mode

Camera Port

3.5mm socket. Dual channel camera port. Connections for shutter and focus trigger. Focus trigger is required by some cameras to activate bulb mode.
If focus trigger is not required it can be disabled on the Settings Page in the app.

Flash Trigger Port

3.5mm socket. Single channel flash port.

Auxiliary Trigger Port

3.5mm socket. Additional single channel trigger port.
Can be used to trigger a second set of fl;ash, a second camera, or some gizmo that does something fancy.



On The Back

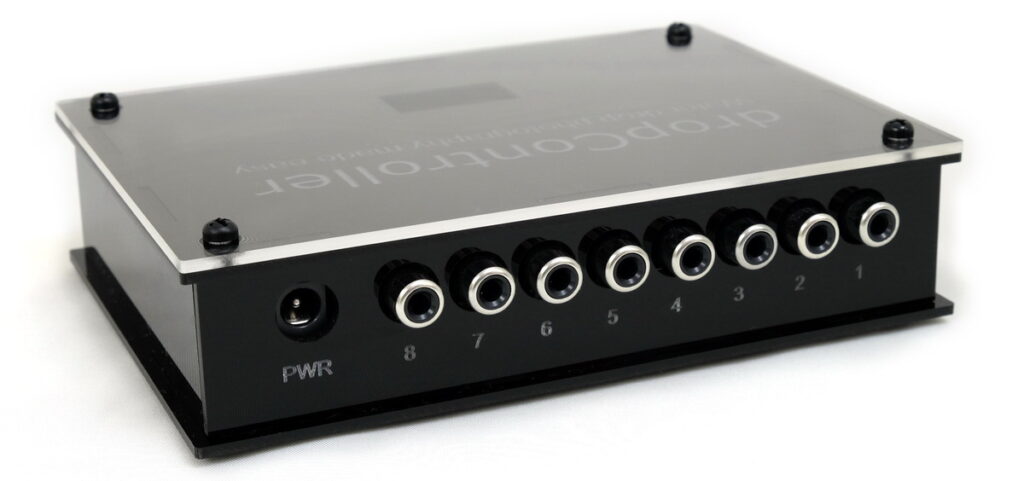

  • 8 Valve Ports (standard RCA/Phono sockets)
  • PWR: Power in (12v or 24v)

Valve Ports

RCA/Phone sockets numbered 1 to 8. The
When the valve ports are active they output either 12v or 24v depending on the power supply being used.
Safety Note: Connect only suitable valves.

Power

The dropController can be used as a 12v or 24v system. Simply use the appropriate power supply.
Safety Note: Use the correct valves with the correct power supply. 12v power supply with 12v valves and 24v power supply with 24v valves.



Control App

The dropControllerV4 is controlled from a clear, easy to use webapp.
dropControllerV4 app screen shot banner

The webapp is covered in detail in the Webapp reference



Wifi Connectivity

The dropControllerV4 is compatible with 2.4ghz wifi networks.
