dropControllerV3

I have made some major updates to the DIY dropController (hardware and software) and I am slowly updating the website. I have left some of the old guides online as they are still helpful but please be aware there are differences.

dropControllerV3 is a fully featured water drop photography controller. Compatible with Android devices and Windows PCs. Sorry, not compatible with ios/apple. If you are an apple user have a look at dropControllerV4.



dropControllerV3 is a DIY project. You can build from Scratch (all plans and apps are available for download) or buy the kit.



Features:
– 6 valve ports
– Camera and flash trigger ports
– 2 auxiliary trigger ports
– 6 valve ports
– Compatible with 12V valves
– Advanced shutter trigger modes
– 3 independent trigger controls
– Loop Mode using delta values (easy collisions)
– Auto save drop data
– Auto save main settings
– Compatible with cameras that have a wired shutter remote function.

dropControllerV3 allows you to start as simple as you wish and become as advanced as you want. It allows you to start in a very simple way but does not limit you as you progress to advanced drops.

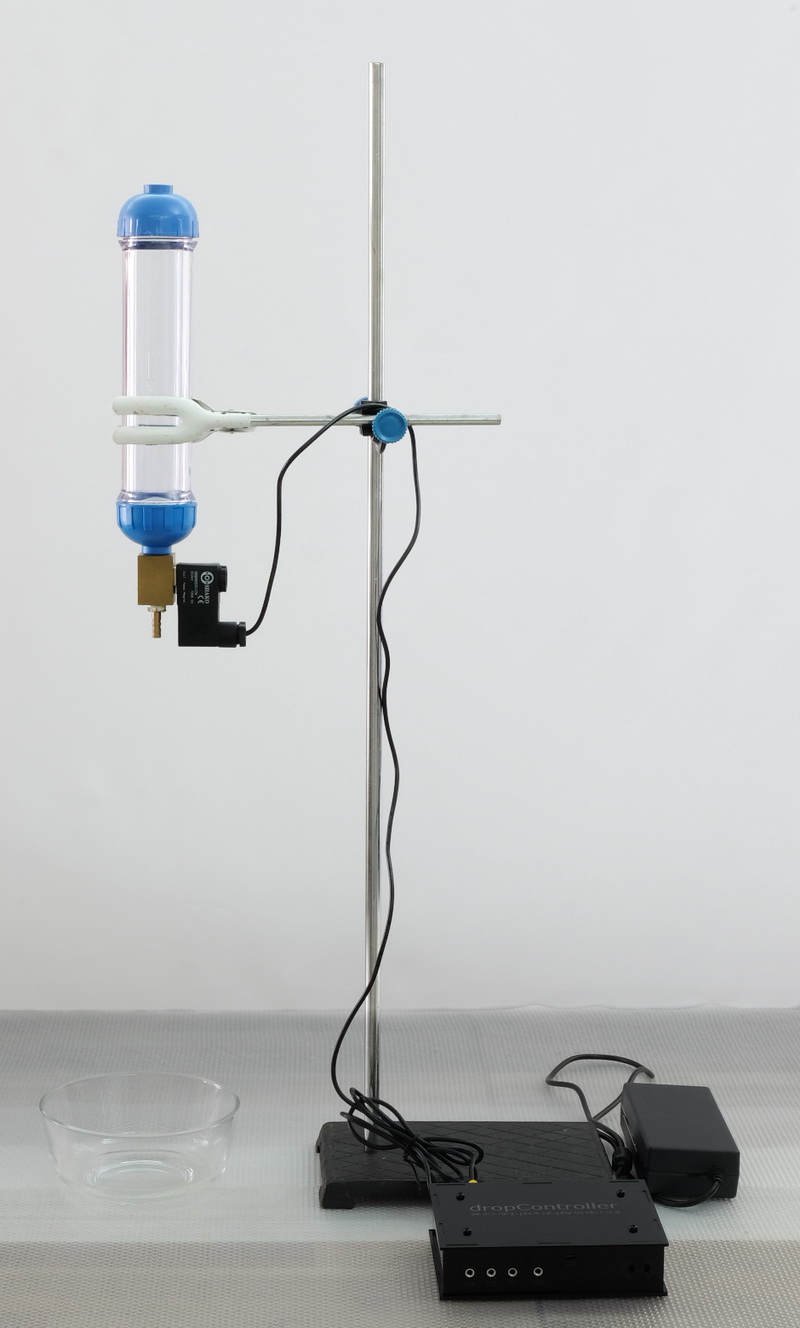

Simple one valve set up on a lab stand.

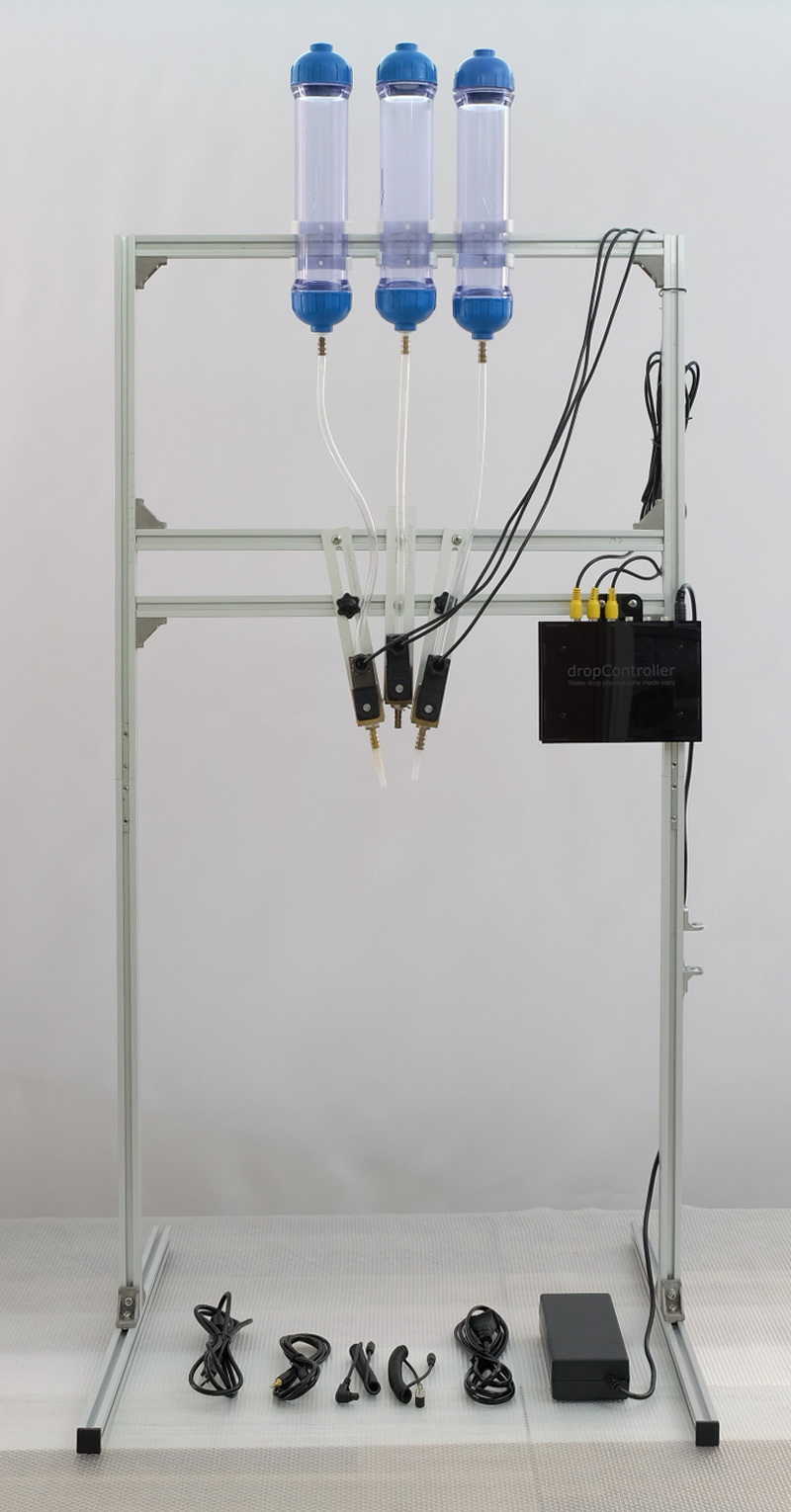

Three valve set up on a dedicated frame.

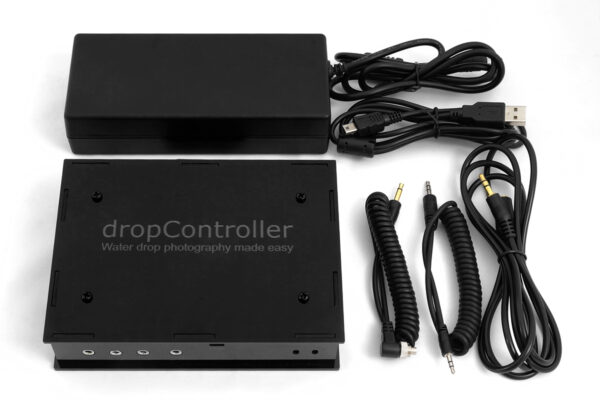

Images show the old style controller in an acrylic case. This is no longer available.



Easy to use control apps

The dropController is controlled from a Windows program or an Android app. Sorry no IOS version. If you are an apple user check out dropControllerV4.

Android App

Easy to use. Easy to understand. Get started in seconds.

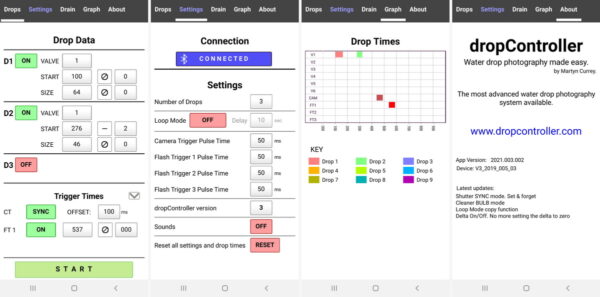

dropController Android app screen shots
The Android app is Compatible with the dropControllerV2 and V3 devices.

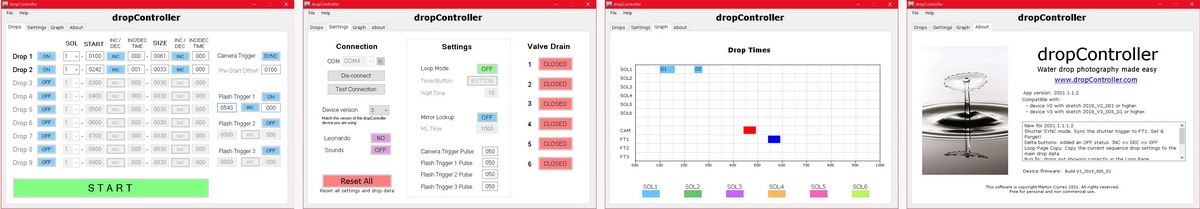

Windows App

Clean and clear interface. All the key drop data available in one easy to use panel.

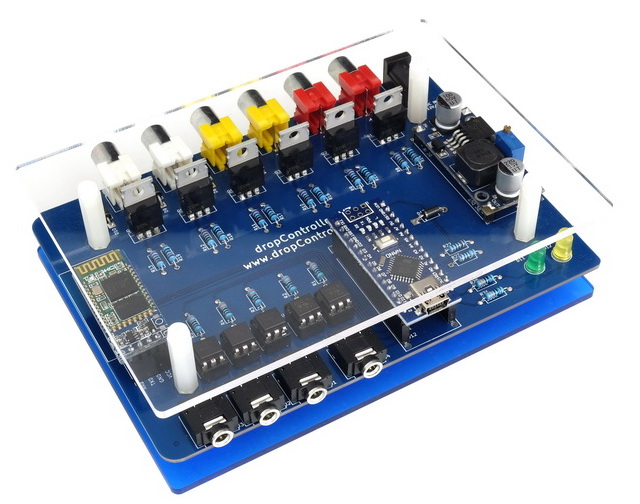

Self Assembly Kit

Want to build your own controller but don’t have the parts? The dropControllerV3 kit contains everything you need

The does not include a power supply or a case.

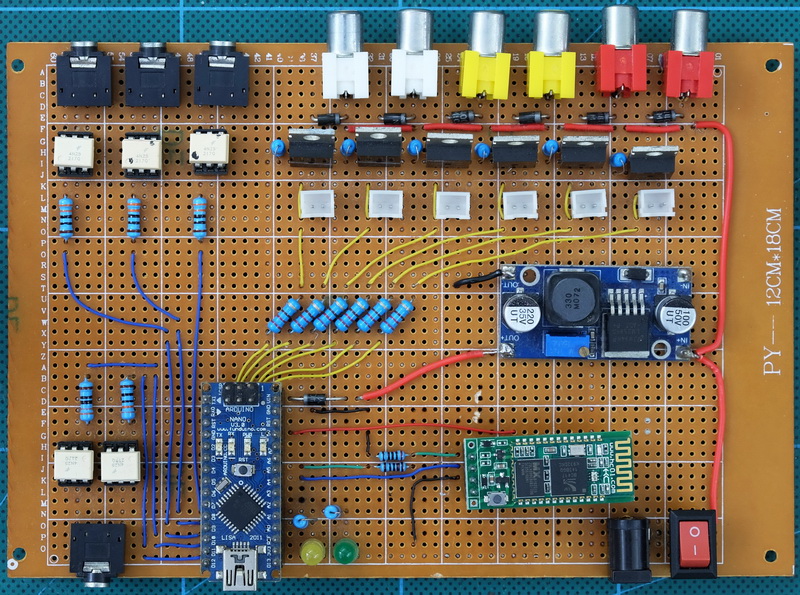

Full DIY


 Have the parts then the full DIY option could be for you. Check out the DIY menu above for the circuit, parts list, and more.
