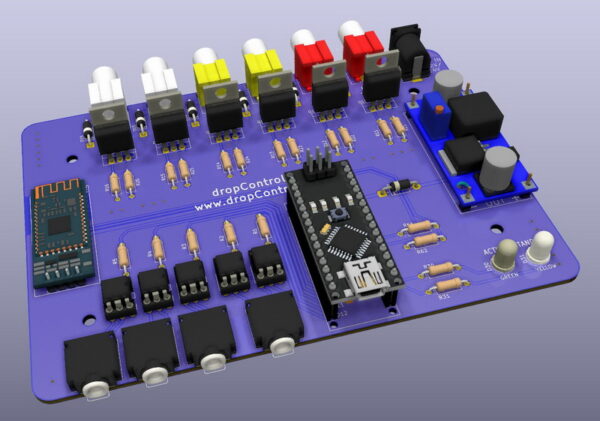

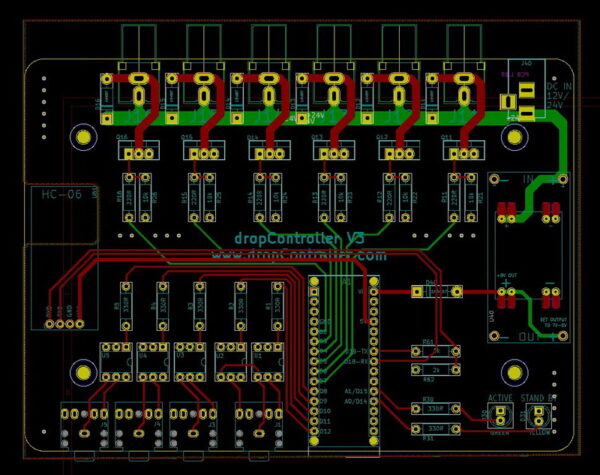

dropControllerV3 PCB Files

I’ve been meaning to release the version 3 PCB files for some time but I never quite got round to cleaning up the files. Until now!

The PCB is designed in KiCAD with all symbols and footprints moved to project libraries (I think). All components are through hole and I have tried to make it as easy as possible to put together, however, I do not recommend this as a first soldering project.

The files are free for non-commercial use and provided as is with no warranty, guarantees or liability on my part.

You are advised to review and check the files before having PCBs manufactured.

If you are thinking of making PCBs it might also be a good idea to have a look at the construction guide.



dropControllerV3 PCBv1.60 Kicad files (27mb zip file. It’s the 3D models!).
