Shop: dropControllerV3 Kit Plus

Fancy building your own dropController? This is everything you need.

Price: US$99.00 / €95,00 / HK$700.00

Out of stock.

dropControllerV3 details here.

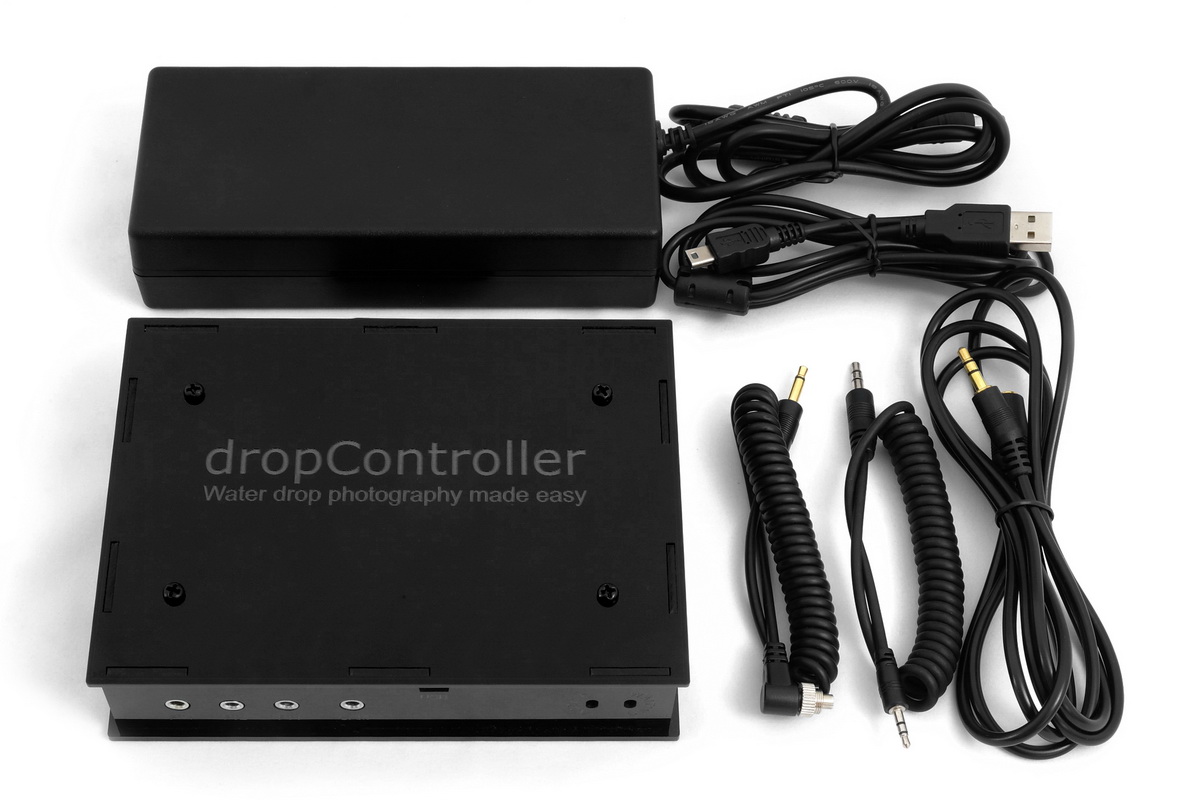

Package contents

  • All components to build the dropControllerV3
  • Power supply (12v or 24v)
  • Shutter trigger lead
  • Flash trigger lead
  • Trigger lead extension
  • USB lead

Special promotion: Free Acrylic case. Normally USD30.00

dropControllerV3 is compatible with Android and Windows only. Sorry. No ios/apple.
Android app and Windows program available for download from the Downloads page.

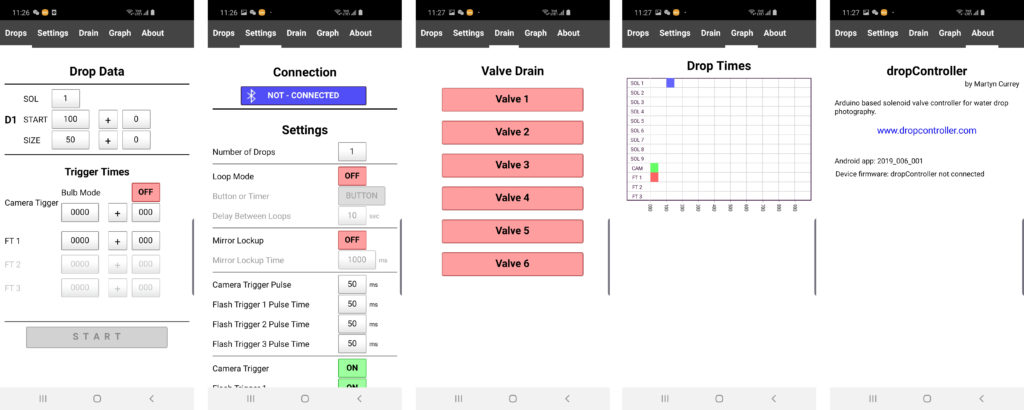

Screen shots from the Android app.

Components

  • 1 x PCB
  • 1 x Arduino Nano
  • 1 x Bluetooth Module
  • 1 x DC-DC step down buck converter (style will change without notice)
  • 1 x DC-05 barrel socket
  • 6 x RCA-RCJ-04x RCA / Phone socket
  • 4 x PJ-307 3.5MM stereo socket
  • 5 x 6 pin DIL socket
  • 5 x 4N35 optocoupler
  • 6 x IRL540N or IRLZ44N mosfet
  • 1 x 5mm green LED
  • 1 x 5mm yellow LED
  • 7 x 1N4007 diode
  • 6 x 1/4W 10K resistor
  • 1 x 1/4W 2K resistor
  • 1 x 1/4W 1K resistor
  • 7 x 1/4W 330Ω resistor
  • 2 x 1/4W 220Ω resistor
  • 2 x 1×15 SIL socket
  • 1 x 1×4 SIL socket

Some parts may change without notice depending on availability.
Kits now usually include a fixed 9V output DC-DC buck converter.

The Arduino is pre-programmed.
The Bluetooth module is pre-setup.

Power Supply

Input: 100-240v, 50-60MHz
Output: 12v or 24v

Style may change without notice.

Shutter Release Cable

Various shutter release cables available.

Not sure what lead you require, see the common shutter release leads page. Still not sure? Drop me an email.

Normally a coiled lead 30-100cm.
I sometimes have limited stocks of non-coiled 1 metre leads which will be used when available.

Please state your camera make and model when enquiring.

Flash Trigger Lead

3.5mm jack to PC socket.
Coiled lead 30-100cm.

This is a DIY kit and requires assembly. You should have at least basic to middling soldering skills and of course soldering tools. Please read through the construction guide so you are aware of what is required before purchasing. I do not recommend this as a first soldering project.

The main components are fully tested but due to the nature of the kit I cannot fully guarantee it. There is a lot of possible user error!

A full list of components is available here (PDF).
The construction guide can be found here (PDF).
